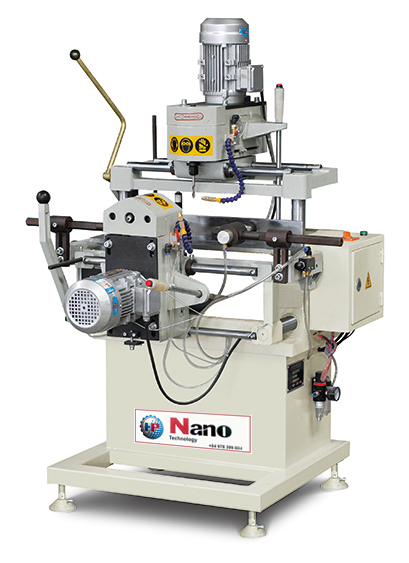

Double-head Copy-routing Milling Machine
LJXF2-300×100

Double-head

Product description
Equipment Features
Used for copy-routing processing various kinds of holes, grooves and water-slots.
It has features of compact structure and small volume; the air pressure drives the clamping.
It can achieve continuous copy-routing milling, easy operation and safety.
Technical parameters
Power supply：380V 50HZ
Input power：2×1.1kw
Air pressure：0.5~0.8Mpa
Cutter rotary speed：12000r/min
Diameter of milling cutter：Φ5、Φ8mm
Copy-routing Range：300×100mm
Profile height×width：100×120mm
Overall dimension：870×700×1500mm
Prev Milling Machine：LJXF1-300×100 Single-head Copy-routing Milling Machine
Next Milling Machine：None
