Equipment features:

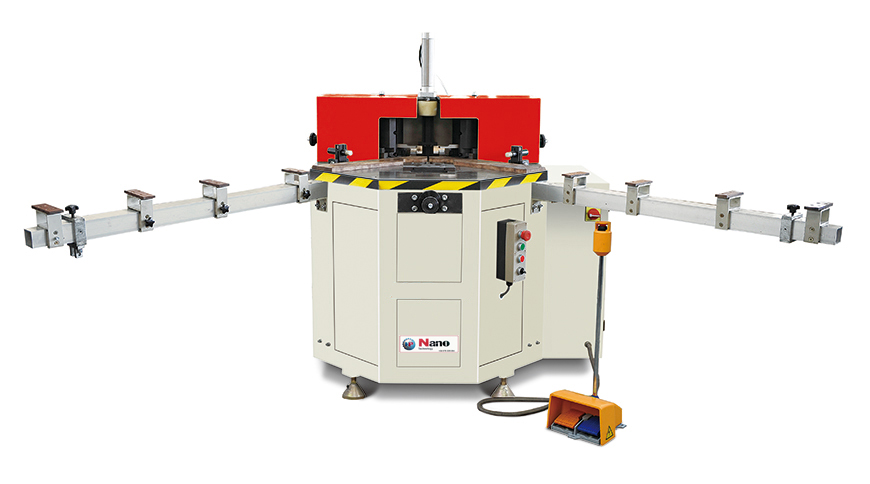

It is suitable for the punch rivet connection of aluminum door&windows.
The corner combining power is supplied  by the hydraulic system, with large punching and riveting force, processing stably.
The combining cutters can be adjusted up and down within a large scope, which is suirable for the high profile.
It is easy to take and put the profile with the freely lifting the internal positioning.
It can be configured with double-edge combining cutters, which strengthens the corner combination.
PLC control system to ensure machine work stable and reliable. Input power：2.2kw
Power supply：380V/50HZ
Air pressure：0.5~0.8MPa|
Rated pressure：20MPa
Capability of oil box：40L
Corner combing cylinder movement stroke：100mm
The adjustable range of the main location block：100mm
Overall dimension：2300×1850×1350mm
