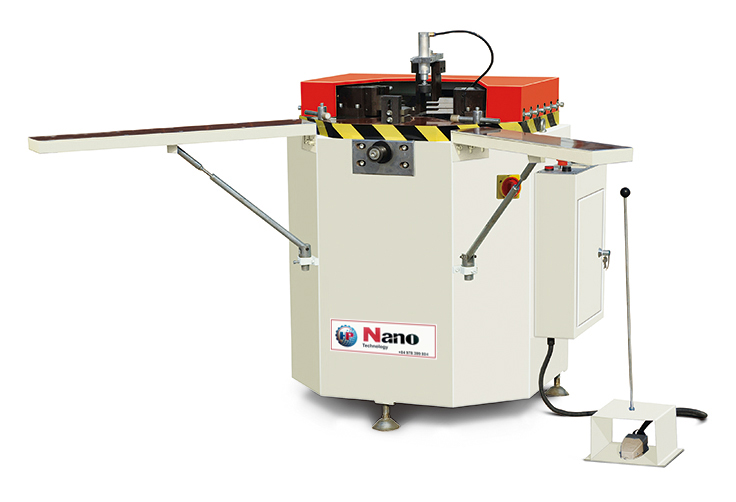

Single-head Synchronous Corner Combining Machine
LJZJ-120

Single-head

Product description
Used for combining the 90 corner of high quality aluminum window and door.
Adopt new mechanical linkage device, realized complete synchronous corner combining.
Adjustable locating device suitable for various sections and sizes processing.
Left and right punching heads adopt hard synchronous feeding device, thus avoided useless deformation and made the connection more firmly.
Easy machine setting due to the synchronous feeding device.
Technical parameters

Input power：1.5kw
Power supply：380V/50HZ
Air pressure：0.5~0.8MPa|
Rated pressure：15MPa
Capability of oil box：40L
Corner combing cylinder movement stroke：85mm
The adjustable range of the main location block：54mm
Overall dimension：1850×1350×1250mm
