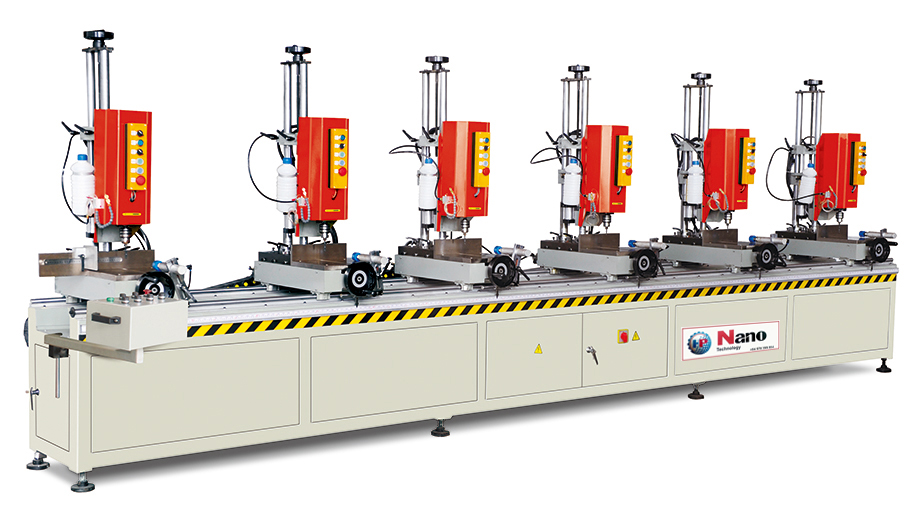

Used for drilling holes on aluminum profiles and curtain wall profiles, apply to volume-produce.
Max processing profile section size is 250×250mm, max processing length is 5000mm.
Multi-head boring anchor can be fixed to meet multi-holes processing requirement.
Feeding system adopts air-hydraulic damping cylinder, which ensured smooth feeding.
Imported PLC control system with steady capability

Input power：6×0.75Kw
Power supply：380V/50Hz
Air pressure：0.5～0.8MPa
Max distance between two drilling holes：5000mm
Min distance between each group holes：300mm
Max moving distance at horizontal direction of drilling head：120mm
Moving distance at vertical direction：150mm
Max drilling hole diameter：13mm
Max processing profile section size：250×250mm
Power unit quantity：2-6
Overall dimension：5500×1100×1800mm
