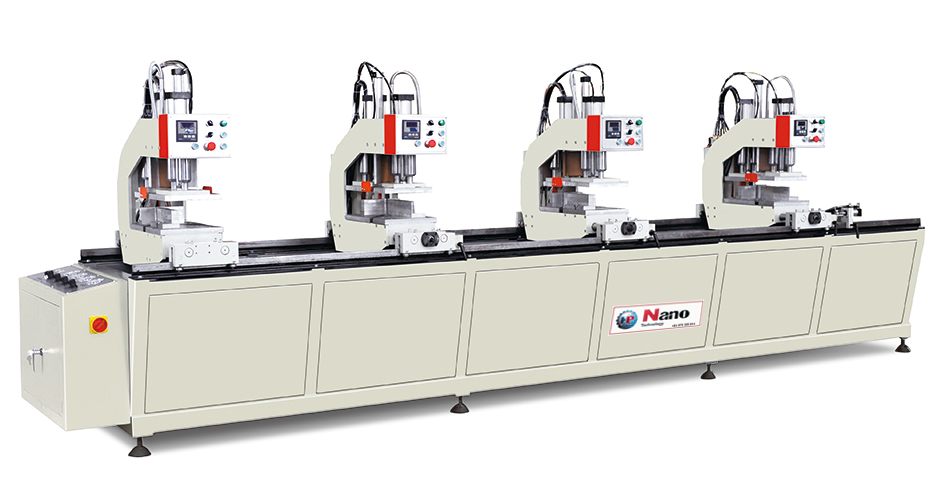

Four Head Welding Machine for PVC Win-door
SHJ4-100/120×4500

Four

Product description
Four head can work seperately or linkage.
PLC controls the welding action/program, high reliability.
Parameters can be set to meet various profiles' processing requirements.
Machine head can work separately or combination.
The right welding head can 30°~180° angle welding.
Technical parameters
Input power：4.5kw
Power supply：220V/50HZ
Air pressure：0.5-0.8MPa
Air consumption：200L/min
Welding height：20-100/120mm
Welding width：100/120mm
Welding range：400×4500mm
Overal dimension：5400x1100x1700mm
