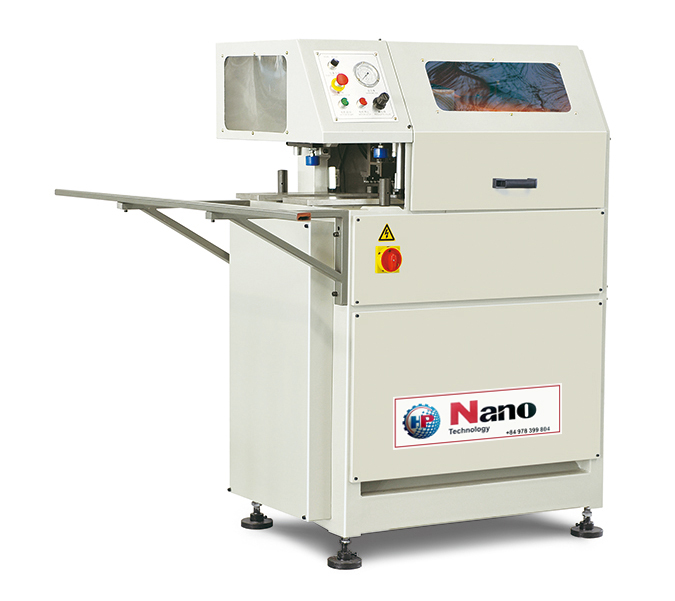

It is used to clean the upper and lower plane welds and the outer exterior angle weld after the plastic profile is welded to form a 90° angle.
The exterior angle is cleaned with a profile cutter featuring high productivity, etc.
The change of profiles calls for the replacement of profile cutter. Input power: 3Kw
Power supply: 380V/50HZ
Air pressure:0.5-0.8mpa
Air consumption:60L/min
Motor rotate speed :2800r/min
profile height:30-120mm
profile width:20-120mm
Cleaning groove width:3mm
Cleaning groove depth:0.3mm
Overall dimension:2000x1820x1500mm
