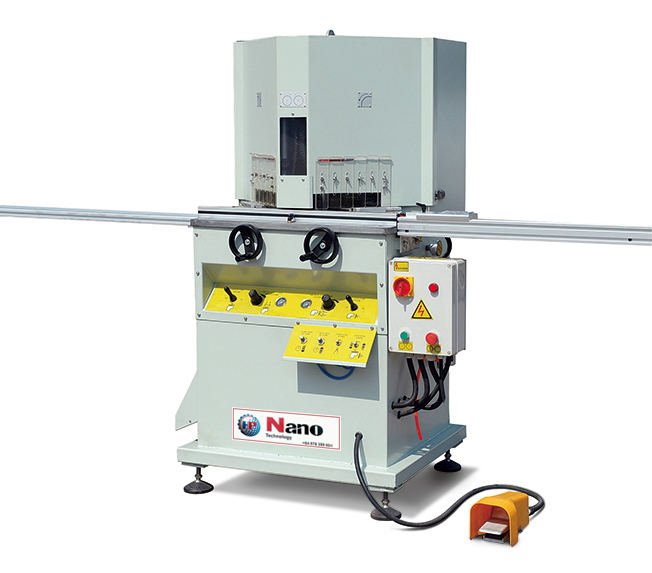

Equipment features:
used to cut wooden profile or glazing bead
It can cut 45 degree profile end together with good surface quality.
The workpiece could suffer little impact power,because the saw blades be installed in different diameter,V-cutting is also can be completed
saw head adopts vertical motion by linear guide,ensure that equipment of stability and longterm saw cutting.

Input power:1.1KW
Power supply:380V 50HZ
Air pressure:0.6-0.8MPa
Motor rotation speed:3400r/min
Saw blade specification:Φ350×Φ32 Z=96-120
Cutting width×height:85×100mm
Overall dimension:820×1080×1600mm
Weight:about 340Kg
