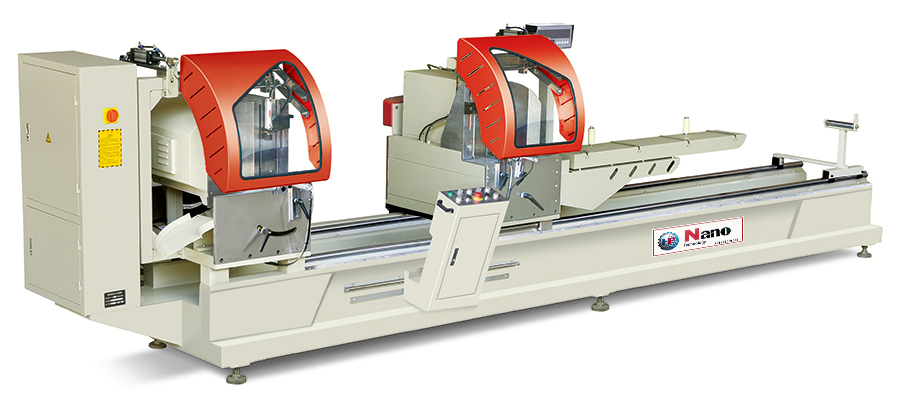

Heavy-duty Digital Display Double-head Precision Cutting Saw
LJZ2X-500×4200
LJZ2X-500×4200
Product description
It has feature of easy operation, reliable performance, advanced technique and convenient maintenance.
The profile cutting size adopts the digital display technique to ensure high efficiency and accuracy.
Imported carbide saw blade gives accurate processing and high efficiency
Two heads can work together or single, when together work, one time can cut off the required length and angle.
Technical parameters
Input power: 2×2.2kw Power supply: 380V/50Hz
Air pressure: 0.5~0.8MPa
Motor rotary speed: 2800r/min
Saw blade specification: φ500xφ30
Cutting Angle: 90° 45°
Cutting Length: 450-4200mm
Cutting Width×Height: 135×200mm
Overall Dimension: 5700×1650×1520mm
