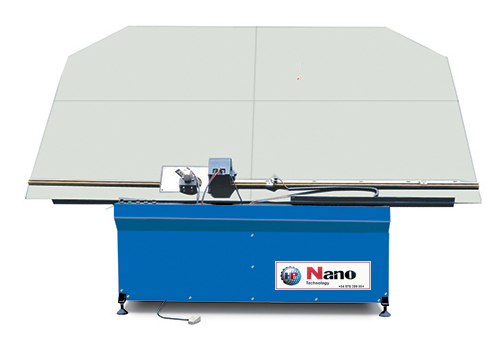

Aluminum Spacer Bar Semi-automatic bending machine
LWJ02

Aluminum

Product description
Main features:
It is special equipment for spacer bending.
The machine adopt PLC controller, manual load spacer, automatic bending after calculated the size.
Recommend for rectangle frame bending only.
The machine feature easy operation and high efficiency.
Technical parameters
Power supply: AC220V/50HZ
Total power: 0.5KW
Air pressure: 0.5~0.8Mpa
Min spacer frame size: 250×250mm
Max spacer frame size: 2000×2000mm
Spacer width range: 5.5mm~23.5mm
Overall dimension: 3400*1600*2300mm
Production tolerances: +/- 0.5mm
