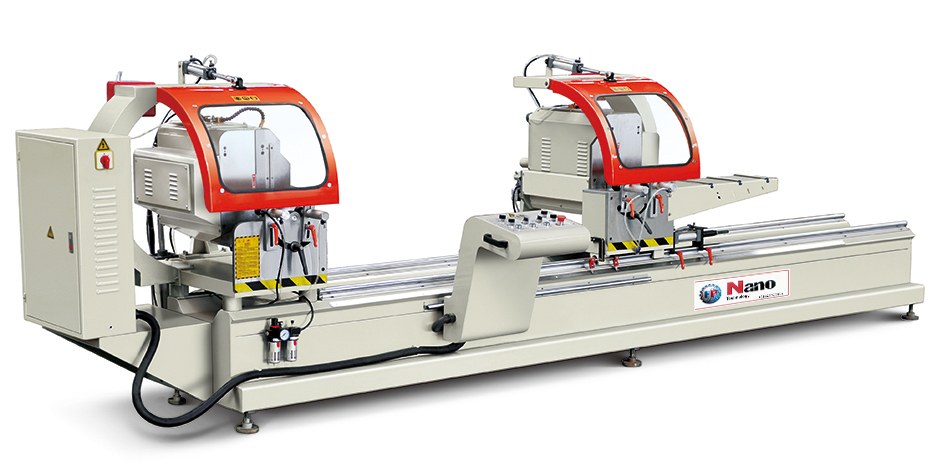

This is one new designed machine which used of cutting proflie of aluminum doors and windows curtain wall and cornerconnector.
It has feature of easy operation, reliable performance, advanced technique and convenient maintenance.
The profile cutting size adopts the digital display technique to ensure high efficiency and accuracy.
Imported carbide saw blade gives accurate processing and high efficiency
Two heads can work together or single, when together work, one time can cut off the required length and angle.

Input power: 2×1.5kw
Power supply: 380V/50Hz
Air pressure: 0.5~0.8MPa
Motor rotary speed: 2800r/min
Saw blade specification: φ450xφ30
Cutting Angle: 45° 90° -45°
Cutting Length: 400-3700mm （90°、135°）、580-3700（45°）
Cutting Width×Height: 120×200mm
Overall Dimension: 5000×1170×1400mm
