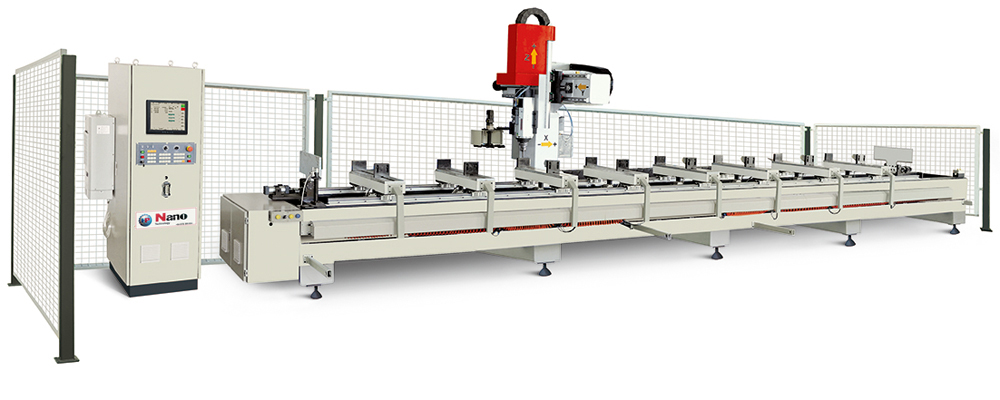

Using advanced industrial CNC systems, friendly human-machine interface, device operation is simple, performance reliable.
Suitable for aluminum alloy, aluminum and wood composite profile, profiles and other light alloys of copper, as well as the u-PVC profile processing.
In one clamping profiles complete milling, drilling, chamfering, grooving and other multi-functional precision machining.
Made of high strength welding structure, after heat aging after annealing processing guarantee high rigidity and high stability. Adopts imported high precision linear guideways, ball screws, gear racks and servo motor, ensuring smooth motion, positioning and processing of high precision.
High-quality imported automatic tool change for high speed motorized spindle ensure stability, stability of rotation noise, cutting ability.
Equipped with 6-station capacity servo magazine, adjustable pneumatic special fixture ensure efficient processing.
Double table for two parts, or two kinds of profile machining, interactive feeding, non interference.
Double safety protection structure, ensure the safety of the operator.
X-axis stroke：7000mm
X-axis feed rate：0~60m/min
X-axis positioning accuracy：±0.05mm
Y-axis stroke：540mm
Y-axis feed rate：0~48m/min
Y-axis positioning accuracy：±0.02mm
Z-axis stroke：200mm
Z-axis feed rate：0~20m/min
Z-axis positioning accuracy：±0.02mm
Repeat location accuracy：±0.02mm
Roughness：Ra 6.3 μm
Spindle Power：7.5kW
Power Specification：380V/50Hz
Spindle Speed：0~24000rpm
Total Power of Machine：12kW
Working Pressure：0.6～0.8MPa
Machine Size：11300×2350×2550mm
Net Weight：4500kg
