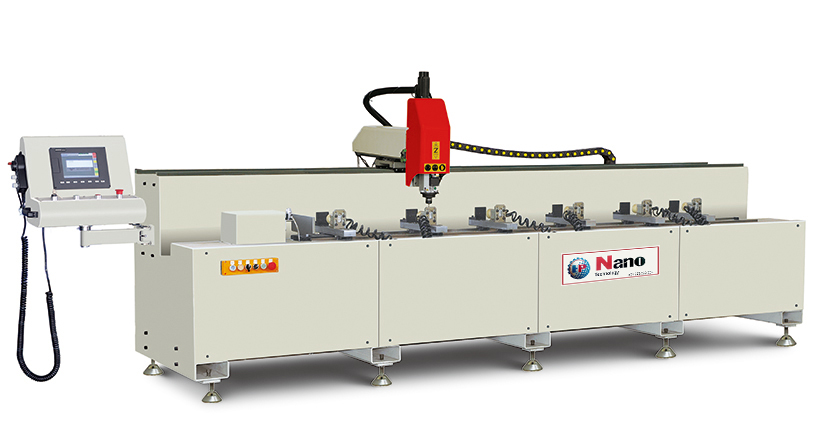

Using advanced industrial CNC systems, friendly human-machine interface, device operation is simple, performance reliable.
Suitable for aluminum alloy, aluminum and wood composite profile, profiles and other light alloys of copper, as well as the u-PVC profile processing.
Bed made of high strength welding structure, completed after thermal aging treatment of maching in one clamping.
Adopts imported high precision linear guideways, ball screws, gear racks and servo motor, ensuring smooth motion, positioning and processing of high precision.
High-quality imported automatic tool change for high speed motorized spindle ensure stability, stability of rotation noise, cutting ability.

X-axis stroke：3500mm
X-axis feed rate：0~60m/min
X-axis positioning accuracy：±0.05mm
Y-axis stroke：300mm
Y-axis feed rate：0~48m/min
Y-axis positioning accuracy：±0.02mm
Z-axis stroke：200mm
Z-axis feed rate：0~20m/min
Z-axis positioning accuracy：±0.02mm
Repeat location accuracy：±0.02mm
Roughness：Ra 6.3 μm
Spindle Power：5.5kW
Power Specification：380V/50Hz
Spindle Speed：0~18000rpm
Total Power of Machine：8.5kW
Working Pressure：0.6～0.8MPa
Machine Size：5100x1420x1750mm
Net Weight：1100kg
