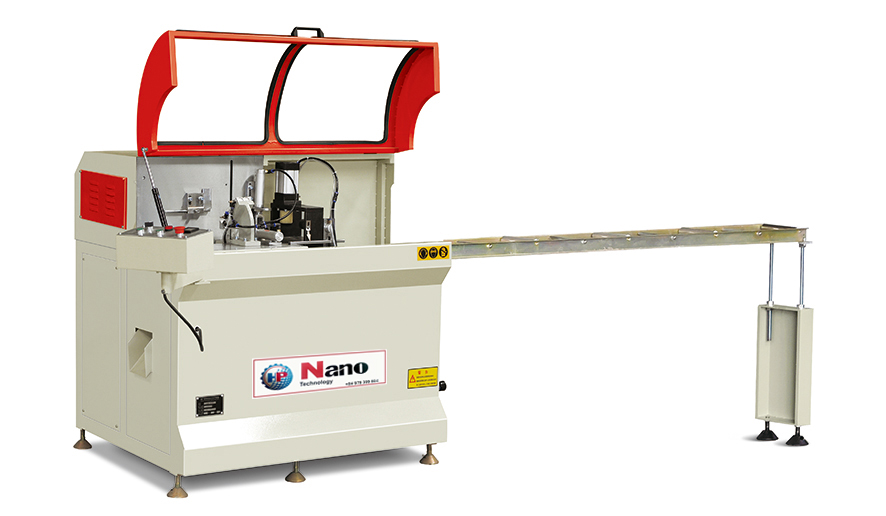

Corner Connector Auto Cutting Machine
LJJM-450/500

Corner

Product description
Used for aluminum corner connector cutting.
Imported carbide saw blade is of accurate processing and high efficiency.
Imported carbide saw blade is of accurate processing and high efficiency.
Feeding motion using linear motion bearing small movement resistance of high precision.
Feeding mechanism of automatic feeding system is stable and reliable with high efficiency.
Work clamping,cutting and uses the pneumatic control system,convenient operation,safely and reliability,high productively.
Technical parameters

Input power: 2.2kw
Power supply: 380V/50Hz
Air pressure: 0.5~0.8MPa
Motor rotary speed: 2800r/min
Saw blade specification: φ500/450×φ30×4-Z120
Auto feeding length: 5~500mm
Blade feeding speed: 0~3m/min
Cutting Width×Height: 135×300mm
Overall Dimension: 1200×1400×1600mm
