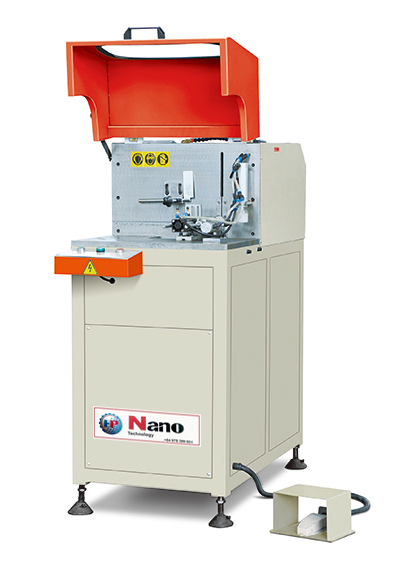

Equipment Features
It has features of easy opertion,reliable performance,advanced technique and convenient maintenance etc.
Used for corner connector of aluminum profile and plasitic profile cutting.
Only one time clamping, can achieve 6 meters corner section bar continuous cutting.
The tool adopts hard alloy saw blade, motor power, high cutting speed, high productivity, high precision machining.
Feeding mechanism of automatic feeding system is stable and reliable with high efficiency.
Work clamping, cutting and uses the pneumatic control system, convenient operation, safety and reliability, high productivity.
Adopted the electrical motor protect device to improve the safety.

Input power: 2.2kw
Power supply: 380V/50Hz
Air pressure: 0.5~0.8MPa
Motor rotary speed: 2800r/min
Saw blade specification: φ450×φ30×4-Z120
Cutting Width×Height: 120×200mm
Overall Dimension: 1200×900×1300mm
