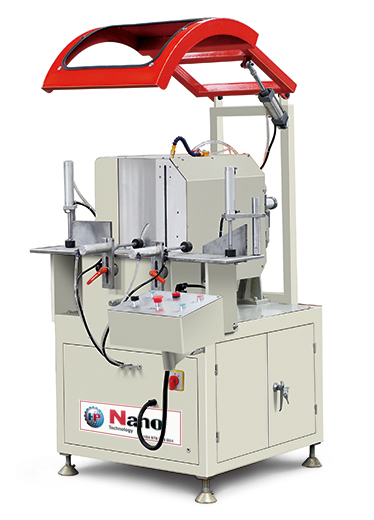

Single-head Cutting Saw
LSJ-450A

Single-head

Product description

This machine tool can be equipped with digit display positioning system as required by the customer, to guarantee the precise machining.
The blades are fed upwards for fast reset, which are convenient and efficient.
The blades may execute the cutting at angle 45°and 90°freely.

Technical parameters
Input power: 2.2kw
Power supply: 380V/50Hz
Air pressure: 0.5~0.8MPa
Motor rotary speed: 2800r/min
Saw blade specification: φ500xφ30
Cutting Angle: 45° 90°
Cutting Width×Height: 235×150mm
Overall Dimension: 1200×1300×1500mm
