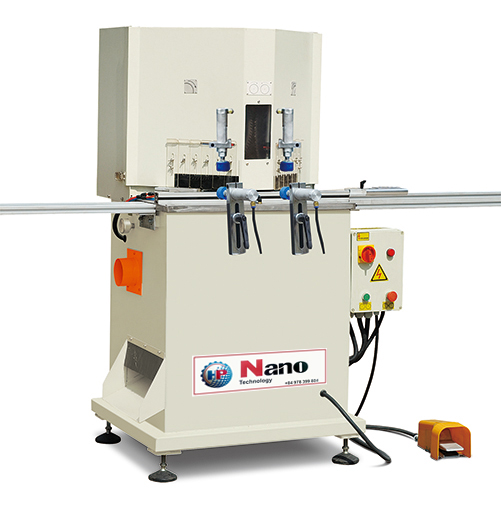

Used to cut aluminum profile or glazing bead.
It can cut 45°profile end together with good surface quality.
The workpiece could suffer little impact power, because the saw blades be installed in different diameter, Vcutting is also can be completed.
Saw head adopts vertical motion by linear guide, to ensure that equipment of stability and longterm saw cutting precision. Input power: 2.2kw
Power supply: 380V/50Hz
Air pressure: 0.5~0.8MPa
Motor rotary speed: 3400r/min
Saw blade specification: φ400×φ30
Cutting angle:  45°
Cutting Width×Height: 85×100mm
Overall Dimension: 820×1080×1600mm
