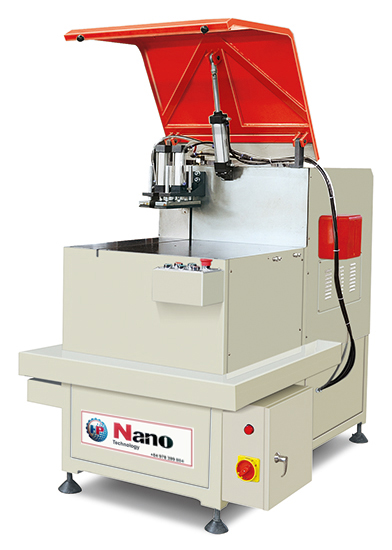

Heavy-duty Single-head Cutting Saw
LDJ-500

Heavy-duty

Product description
Equipment Features:
Used for aluminum windows and doors profile cutting and for curtain wall profile cutting also for PVC profile cutting
Adopted carbide alloy blade
This machine with up-feed blade and digital display posotioning system(depending on request)
Technical parameters

Input power: 1.5kw
Power supply: 380V/50Hz
Air pressure: 0.5~0.8MPa
Motor rotary speed: 2800r/min
Saw blade specification: φ350×φ30
Cutting angle:  0°~135°
Cutting Width×Height: 90×90mm/200×50mm
Overall Dimension: 1700×1200×1600mm
