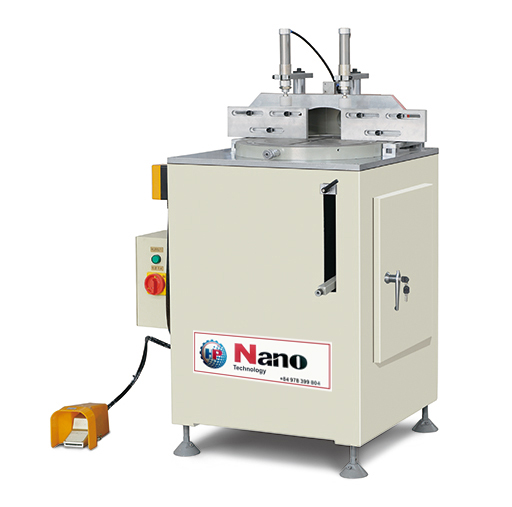

Sing-head Arbitrary Angle Cutting Saw
LJR-350

Sing-head

Product description
Used for cutting profiles of aluminum at 0°-135°。
It has features of easy opertion,reliable performance,advanced technique and convenient maintenance etc.
The imported blade with high precision makes the cutting surfaces smooth.
Technical parameters

Input power: 1.5kw
Power supply: 380V/50Hz
Air pressure: 0.5~0.8MPa
Motor rotary speed: 2800r/min
Saw blade specification: φ350×φ30
Cutting angle:  0°~135°
Cutting Width×Height: 90×90mm/200×50mm
Overall Dimension: 1700×1200×1600mm
