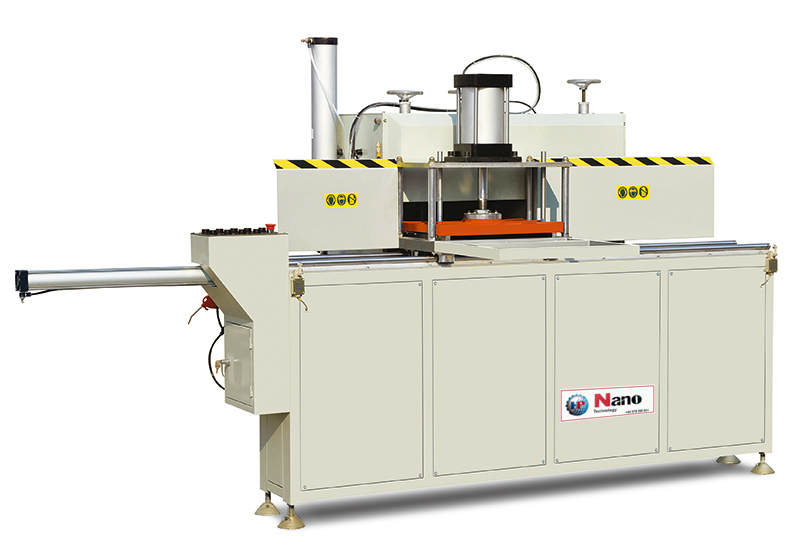

Combined End-milling Machine for Aluminum Profile
LJDXB-250×5

Combined

Product description
Used for aluminum profile end processing, and suitable for various profiles.
Clamp one time can process multi-piece profiles, which increased the processing efficiency.
Convenient tool adjustment to meet different processing requirement.
Need not ordering tools when process various profiles thus can decrease cost and save time.
Large tool diameter, high milling speed and good processing result.
Technical parameters

Input power：3×2.2+1.1Kw
Power supply：380V 50Hz
Air pressure：0.5~0.8Mpa
Motor rotary speed：2800r/min
Cutter specification：Φ250×Φ32mm
Cutter adjustment：0-85mm
Worktable feed stroke：0-1050mm
Overall dimension：3240×970×1670mm
