Equipment Features

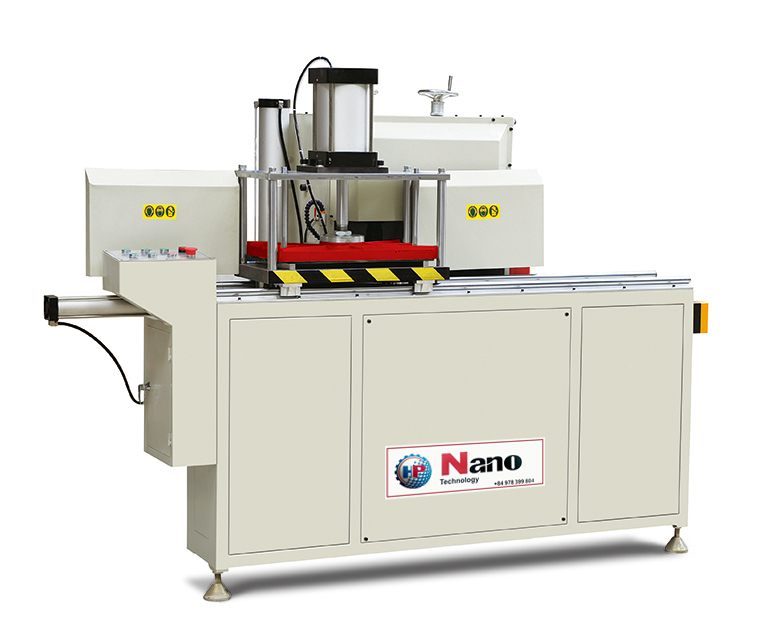

Milling the aluminum mullion profile to connect mullion profile and frame profile.
Can mill many profile in one time with high productive.
Milling Knives can be adjusted up/ down and lift/ right to meet different type of profile.
Milling Knives are adjustable for milling different profile, without special made knives to save the production time, reduce the production cost.
Large diameter of milling knives, high speed milling, good quality milling profile surface.
Adopt the electrical motor protect device to improve the safety.
Hydraulic pneumatic forwarding device is to assure the stability.

Input power：3×2.2Kw
Power supply：380V 50Hz
Air pressure：0.5~0.8Mpa
Motor rotary speed：2800r/min
Cutter specification：Φ250×Φ32mm
Worktable feed stroke：0-1050mm
Overall dimension：2240×970×1670mm
