Features:

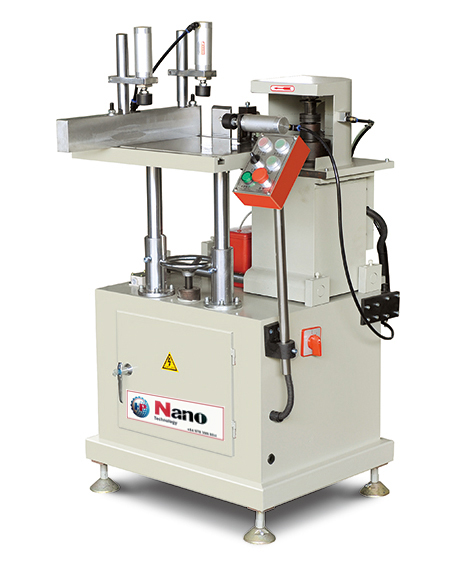

Used for processing aluminium profile end step face and end slot etc.
Super precision main shaft insured accurate and steady processing.
Adjustable processing angle within 30°- 90°.
Convenient tool setting due to adjustable worktable.
The cutter main shaft is connected by shaft coupling, thus the motor main shaft rotating accuracy can not affect the tool’s working accuracy.
Cutter feeding adopted linear bearing motion pair, which insured steady process. Input power：1.5Kw
Power supply：380V/50Hz
Air pressure：0.5~0.8Mpa
Motor rotary speed：2800r/min
Cutter specification：Φ200×Φ32mm
Cutter adjustment：0-80mm
Worktable feed stroke：0-320mm
Overall dimension：850×740×1280mm
