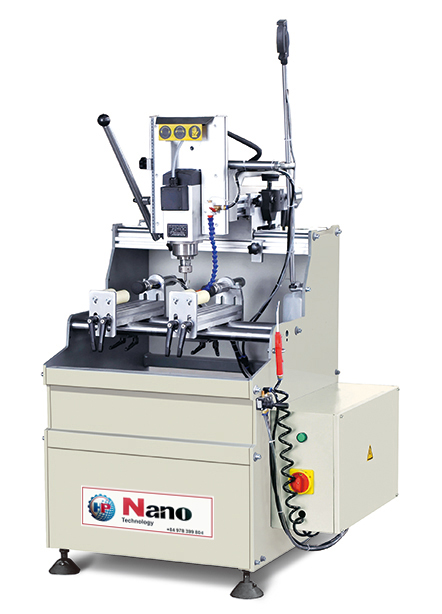

High precision Sing-head Copy-routing Milling Machine
LJFG-370×125

High

Product description
Equipment Feature
It's used for processing all types of holes, grooves and water slots in aluminum and PVC profiles.
It has the features of compact structure, nice design, smart volume and the air pressure controls the starting up of the motor.
Easy replacement of the copy-routing plate, large useful scope, high efficiency and convenient operation achieve the continuous processing and safety operation.
Technical parameters
Input power：2.2Kw
Power supply：380V/50Hz
Air pressure：0.5～0.8MPa
Motor rotary speed：0-18000r/min
Diameter of milling cutter：Φ5、Φ8
Copy-routing Range：370×125mm
Overall dimension：1000×1000×1700mm
