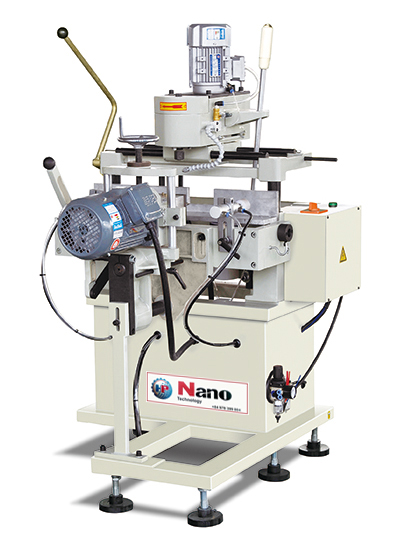

Lock-hole Copy-routing Milling Machine
LJS-300×100

Lock-hole

Product description
Equipment Features
Used for copy-routing processing various kinds of holes, grooves and water-slots.
It has features of compact structure and small volume; the air pressure drives the clamping.
It can achieve continuous copy-routing milling, easy operation and safety.
Technical parameters

Input power：2.5Kw
Power supply：380V/50Hz
Air pressure：0.6～0.8MPa
Three-hole drill diameter：Φ12
Three-hole center distance：21.5×21.5
Diameter of milling cutter：Φ5、Φ8
Copy-routing Range：300×100mm
Overall dimension：1000×1130×1600mm
