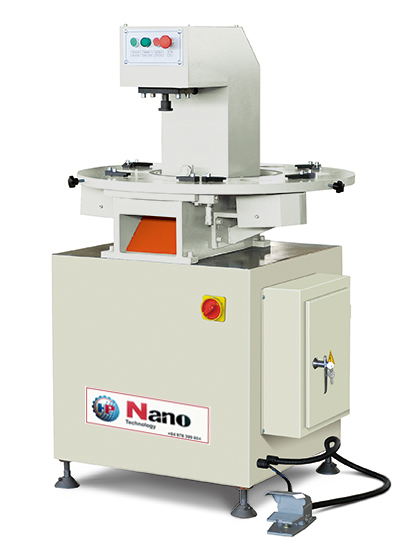

Used for installation of aluminum alloy windows and doors and the punching processing of aluminum profiles.
Every combined punching mold matched with the equipment can finish multi punching processing and by changing processing position, various types of profiles can be processed.
Disk worktable with six working position is equipped with six set dies. Each die is used at any time by the worktable rotating, which greatly increased the production efficiency.

Input Power： 2.2kw
Power supply： 380V/50Hz
Capability of Oil Box： 20L
Press nominal Pressure： 50KN
Travel Times： 30/min
Closing Height： 185mm
Punching Travel： 30mm
Model Size： 250×200×215mm
Overall Dimension： 900×950×1420mm
