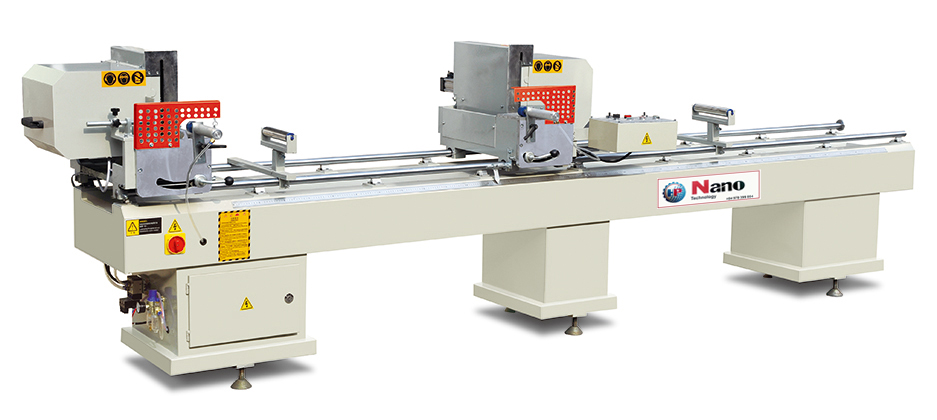

This machine is used for processing the aluminum and plastic profile at angles of 45°, 90°.
The swaying stable feeder is adopted.
The pneumatic driving system is used in profiles clamping and cutting.
It has the features of easy operation and high accuracy.

Input power：2×1.5Kw
Power supply：380V/50Hz
Air pressure：0.5-0.8MPa
Air consumption：30L/min
Saw blade specification:φ400×φ30mm
Motor rotary speed：2800r/min
Cutting height： 500mm
Cutting width： 100mm
Cutting length： 450-3500mm
Overall dimension： 4000×1000×1450mm
