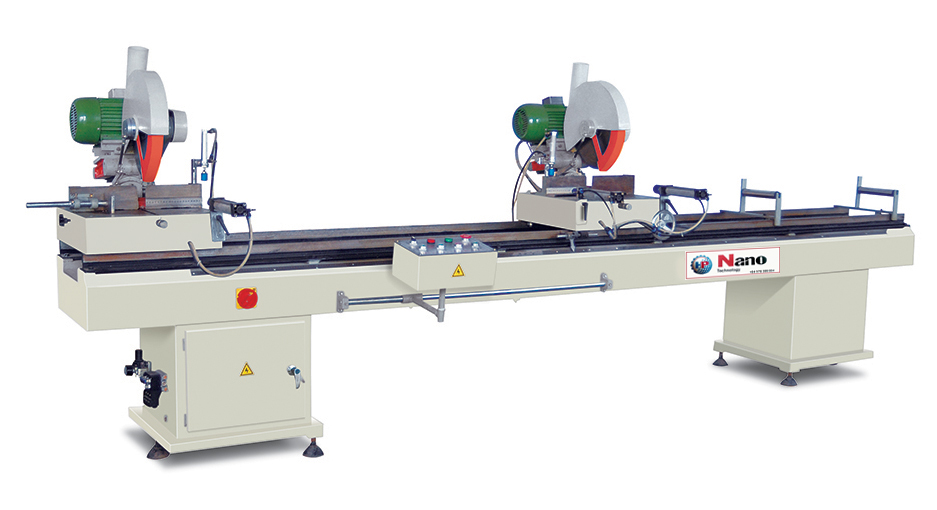

Double-head Cutting Saw
SJZ2-350×3500

Double-head

Product description

Equipment features:
For 45°～90°cutting.
Cutting limitation adjustable.
Saw blade swing forwarding,Convenient operation.

Technical parameters

Input power：2×1.1Kw
Power supply：380V/50Hz
Air pressure：0.5-0.8MPa
Air consumption：30L/min
Saw blade specification:φ350×φ30mm
Motor rotary speed：3200r/min
Cutting height： 100mm
Cutting width： 200mm
Cutting length： 290-3500mm
Overall dimension： 4000×1120×1450mm
