PVC Door and Window Machine

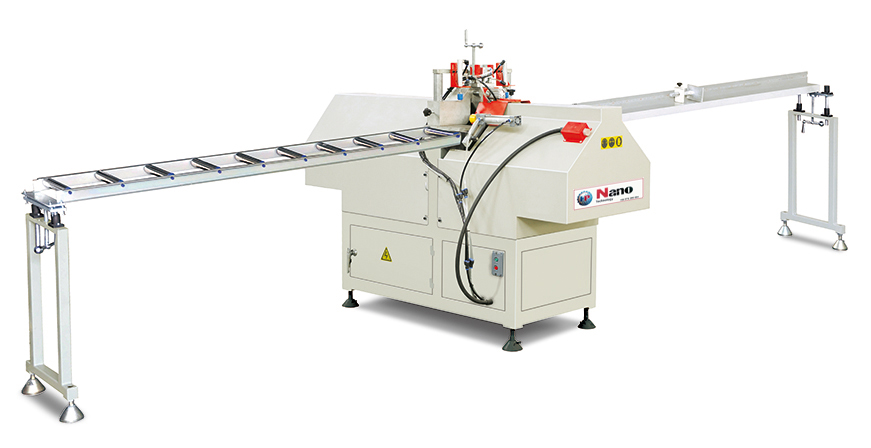

Mulion Cutting Saw for PVC Window and Door
SVJ-45
SVJ-45
Product description
Equioment features This machine is used for mullion cutting of plastic door window.
Tow cutting blades are in the space of 90 degree layout,a clamp is installed at the same time to complete tow v-shaped cutting head,with high cutting precision and high productivity.
Horizontal structure for high cutting precision.
Special clamping device,no pop material.
Cutting waste is produced in the curf only,make good use of the profiles.
Technical parameters
Input Power: 2×1.1kw Power supply: 380V/50HZ
Air pressure: 0.5~0.8MPa
Air consumption: 15L/min
Motor rotary speed: 2800r/min
Cutting height: ≤110mm
Cutting width: ≤120mm
Cutting length: 300~2100mm
Overall dimension: 7500×1720×1390mm
