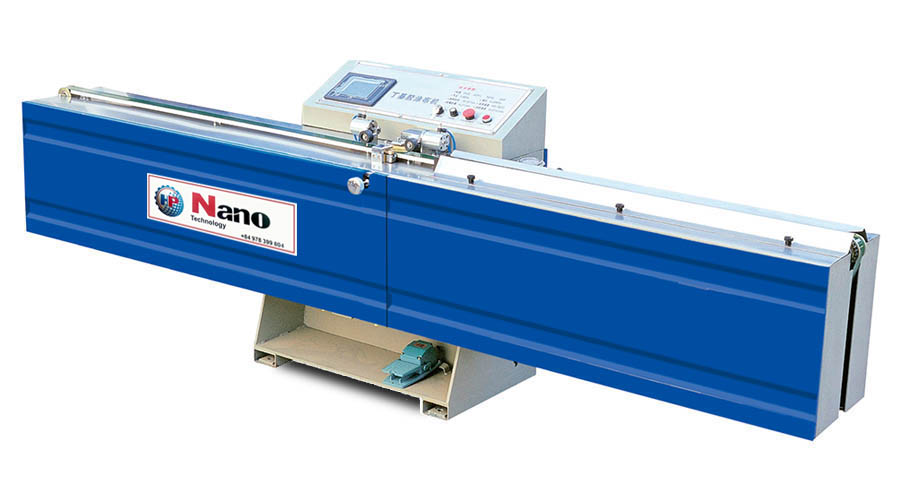

Main Feature
Main device are famous brand goods imported from abroad.
Butyl spreading is well-proportioned and the linearity is good.
Adopts the unique hermetic piston device.
Reasonable butyl spreading system and low pressure.
Advanced device guarantees the best spreading effect on the arc aluminum frame. Power supply: 380V / 50Hz
Total power: 3.2KW
Air pressure 0.5~0.8Mpa
Air consumption: 60L/min
Squeeze pressure: 15-18Mpa
Latex coating temperature: 110~ 160°C
Latex spout adjustable range: 6-20mm
Work speed: 6-20m/min
Overall dimension: 3430×700×1250 mm
