Features:

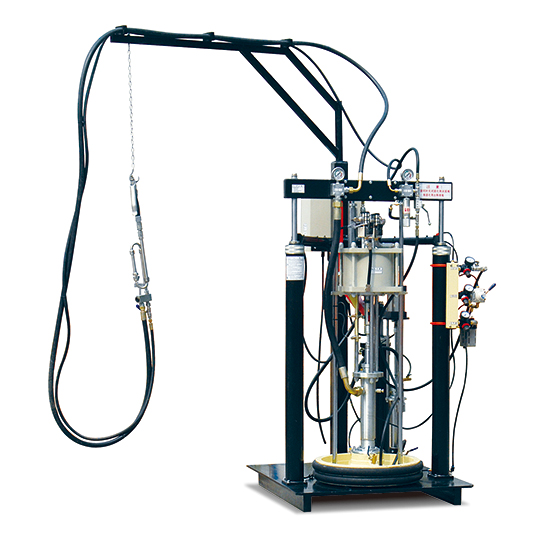

This extruder is the special machine for spreading double-component sealant.
It is full pneumatic type and do not need electric supply, can be easy to move and operation in
the building site.
Easy operation, easy maintenance, stable working, high efficiency, It can suit the request of
insulating glass and glass curtain wall batch production.
The main parts is from South Korea. Brand name : HASCO.
The curative agent hydraulic pressure system have two sets of filtration devices, advance the
uniformity and curative capability.
The valve ports of the basic material pump, the curative agent pump and proportioning pump
all adopt the special alloy with zero leakage.
The rubber mixing system adopt the strip shaker with international static state to -and-fro technology, and the imported mix mandril. Air Pressure: 0.5-0.8Mpa
Mixing Ratio: 6:1-14:1
Basic Component Bucket: 55 Gallon(200L)
Hardener Bucket: 5 Gallon(20L)
Max Air Consumption: 1.0m3/min
Sealant Air Pressure Rate: 50:1
Max Squeezing Pressure: 29Mpa
Overall Dimension: 1100×950×1630mm
